Quick Details

  • Item Type: Fiber Optic Lights
  • Input Voltage(V): 100-265
  • Lamp Power(W): 16
  • Lamp Luminous Flux(lm): 180
  • Working Temperature(℃): -10 - 40
  • Working Lifetime(Hour): 50000
  • Certification: CE, RoHS
  • Emitting Color: RGB
  • Lamp Body Material: Aluminum
  • Light Source: LED
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Idee Lighting
  • Model Number: side pointed
  • fiber core material: PMMA
  • Fiber Cladding Material: Fluorinated Polymer
  • N.A: 0.5
  • Core Refractive Index: 1.492
  • Minimum Bend Radius: 45mm
  • Operating temperature: -50℃~+70℃
  • Diameter tolerance: ±45μm
  • Attenuation: ≤220dB/km
  • Color: Transparent
  • wavelength range: 390-760nm

Packaging & Delivery

Packaging Details: Caron Box
Inner Box:290*110*290mm(1roll/box)
Outer Box:575*300*305mm(5rolls/box)
Package is customizable
Delivery Detail: 3 days after comfirm the payment

Specifications

PVC Multi-String side emitting fiber optic led string light
1,RoHS
2,Diameter:0.75mm/1.0mm/3*0.75mm/3*1.0mm

         LED  PVC Multi-String side emitting fiber optic led string light

Product CodeInner Diameter(mm)Outer Diameter(mm)Attenuation
(DB/KM)
Operate Temp.(°C)length(m/roll) Package (mm)         (Carton Box)weight/box
SF-7500.750.75 ≤200-50~+702700290*110*2902.5kg
SF-100011 ≤200-50~+701500290*110*2902.5kg
SF-750-33*0.753 ≤200-50~+70450290*110*2904kg
SF-1000-33*1.03.8 ≤200-50~+70500290*110*2905kg







DIY LED twinkle sparkle fiber optic light kit



ModelLight Enginefiber optic QTY and DiaFiber
 length
K-5-00116W LED light engine 100pcs:3*0.75mm 2m
K-5-00216W LED light engine 100pcs:3*0.75mm3m
K-5-00316W LED light engine 150pcs:3*0.75mm2m
K-5-00416W LED light engine 150pcs:3*0.75mm 3m
K-5-00516W LED light engine 100pcs:3*0.75mm4m



Plastic Optic Fiber Advantages



  • No electricity at the point of illumination- fiber optic cables carry only light to the point of illumination. The illuminator and the electricity that powers it can be many yards away from the objects or areas being lit. For fountains, pools, spas, steam showers or saunas - fiber optic systems are the safest way to provide illumination.

  • No heat at the point of illumination - fiber optic cables carry no heat to the point of illumination. No more hot display cases and no more burns from overheated lamps and fixture, and if you're lighting heat-sensitive materials like food, flowers, cosmetics or fine art, you can have bright, focused light without heat or heat damage.

  • No UV rays at the point of illumination - fiber optic cables carry no destructive UV rays to the point of illumination, which is why the world's great museums often use fiber optic lighting to protect their ancient treasures. For preserving fragile and precious items, fiber optic systems provide bright but gentle light.

  • Easy and/or remote maintenance - whether the issue is access or convenience, fiber optic systems can make re-lamping a breeze. For fixtures that are difficult to access, the illuminator can be located in a place that's easier to reach, and for multiple small lights (stair lights, paver lights or chandeliers) changing a single illuminator lamp re-lamps every light at once.

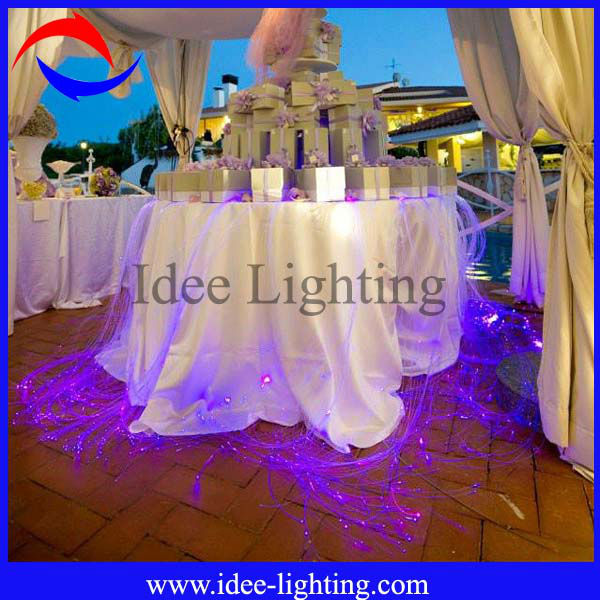

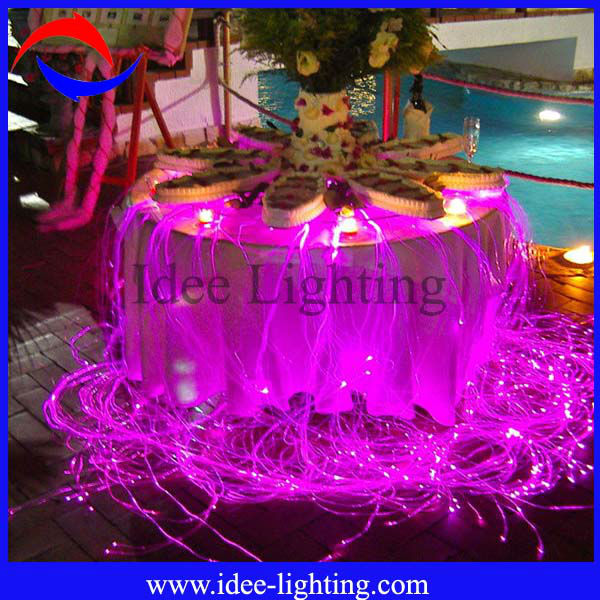

Plastic Optic Fiber Application

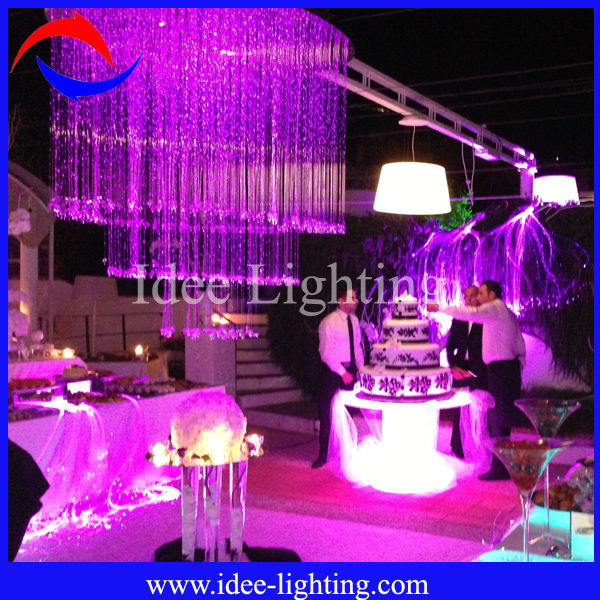

Plastic Optic Fiber Chandelier

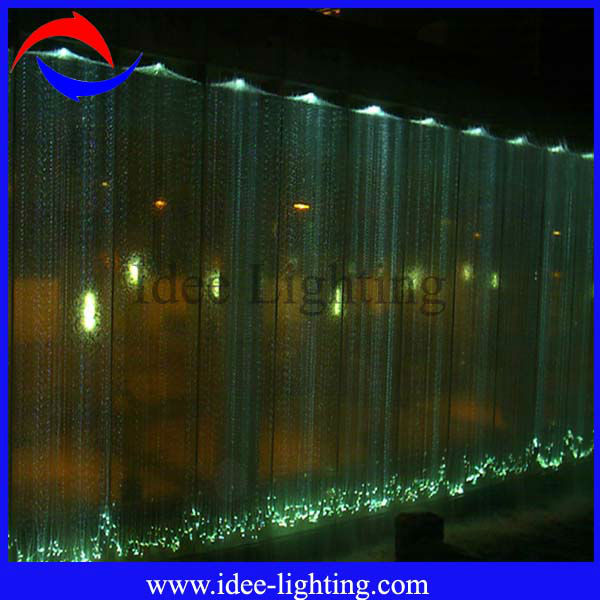

Plastic Optic Fiber Curtain


Fiber Optic Light Source

For more details, please feel free contact us.

We will offer you our professional Service
